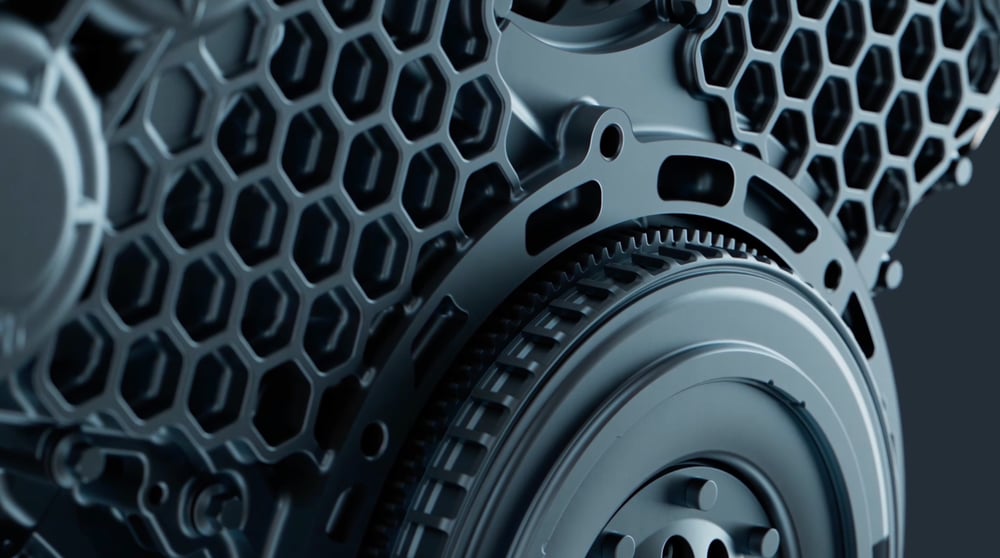

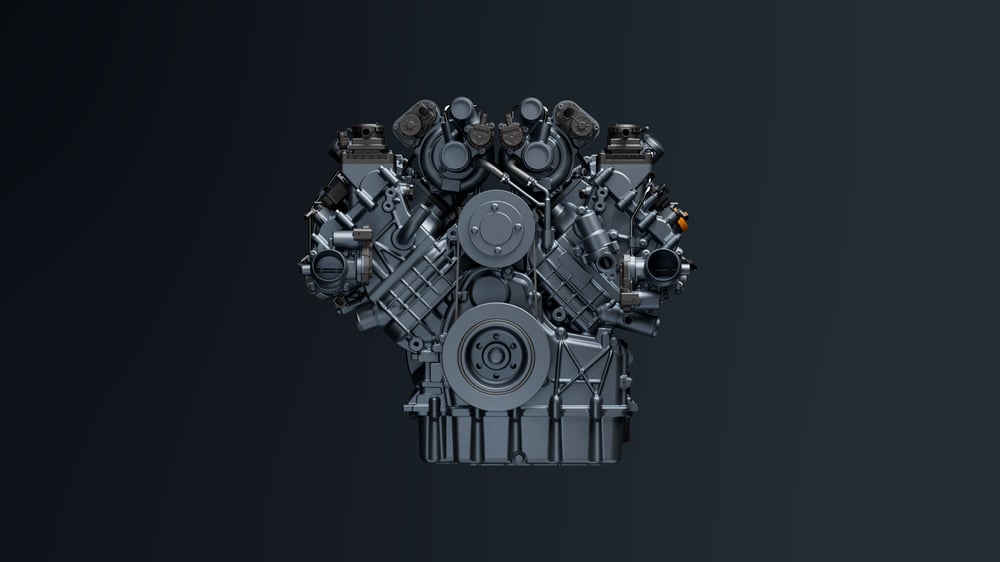

The HORSE W30 is a powerful and lightweight V6 engine for hybrid vehicles.
Delivering up to 400kW of power and 700Nm of torque, it is able to be deployed in a transverse or longitudinal configuration, allowing it to be packaged in a wide variety of hybrid vehicles and automakers in increase their hybrid vehicle line-up.

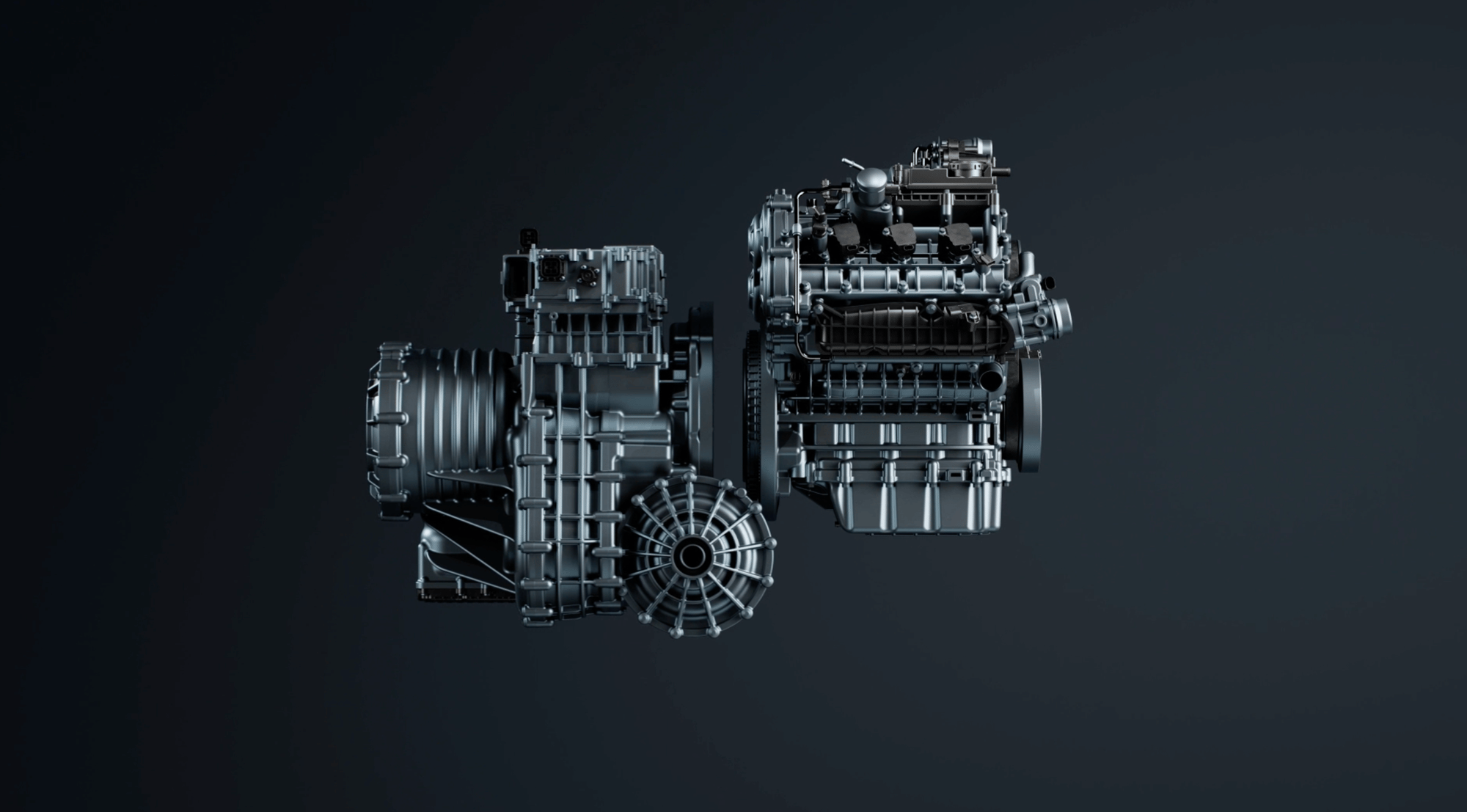

It is paired to the HORSE 4LDHT four-speed hybrid transmission, weighing only 199kg, and is designed to be mounted in a P1 + P3 configuration.
Horse Powertrain’s first V6 engine is a high performance 3.0-liter engine, designed to support mild- and full-hybrid vehicles. The HORSE W30 weighs just 160kg, 10kg less than the next-lightest V6 on the market today. This engine offers outstanding
fuel economy and efficiency.
The HORSE 4LDHT is a four-speed hybrid transmission and e-machine delivering a responsive, smooth driving experience with electric traction. It is designed for vehicles using larger-displacement engines from Horse Powertrain in hybrid configurations.
HORSE W30
HORSE 4LDHT
| Fuel type: | Gasoline |
| Hybrid configuration: | HEV/PHEV/REEV |
| Number of cylinders | 6 |
| Cylinder arrangement: | V-Angle (90°) |
| Displacement (L): | 2.99 |
| Induction: | Turbocharged |
| Fuel injection method: | Gasoline Direct Injection (GDI) |
| Maximum power(kW): | 350-400 |
| Maximum torque (Nm): | 600-700 |
| Weight (kg): | 160 |
| Dimensions (mm): | 460 × 690 × 650 |
| Voltage platform: | 800V |
| Hybrid architecture: | P1 + P3 series-parallel |
| Weight including oil (kg): | 199 |
| Gears (Engine drive): | 4 × 2-speed |
| Gears (Motor drive): | 1 × 2-speed |
| Maximum wheel torque (Nm): | >9,200 |
| Motor peak power (kW): | P1: 250-300, P3: 350-450 |
The industry's first complete toolkit for adding hybrid capability to BEV-native platforms.
